In Tkinter, only the Canvas widget is a natively scrollable container. That means that it can have an actual size larger than the screen size, and you can move the area you are viewing. That's what scrolling really is!

Check out this diagram:

The content (with the darkest background) is the "actual size", which usually is also the "scrollable area".

The scrollable frame is what the user sees, and you can think of it as a "window" that lets you see into the scrollable area.

Using a Canvas for scrolling

What we'll be doing is creating a Canvas, and inside it creating a window.

The window can have as much content as we like, but it's the Canvas that we'll be placing inside our application.

That means that we'll be able to set the Canvas size to whatever we want, and then when we scroll we'll be moving along the window inside it.

In order to do so, we must also specify what the scrollable area will be. Often, the scrollable area matches the contents of the inner window—but it can also be different if we wish.

Let's start off by creating all the widgets we'll need. Those are:

  • An application window (a tk.Tk object)
  • A container frame for our canvas and scrollbar
  • The canvas
  • The scrollbar
  • A frame that will become the scrollable frame

Almost all these widgets will work like normal Tkinter widgets (i.e. you place them in their container and then use Pack or Grid). However, the scrollable frame will behave differently. We will create it, giving it the canvas as its container, but instead of using Pack or Grid, we will using the canvas' create_window method to create a window within the canvas that shows the scrollable frame's content.

Creating the widgets is straightforward enough:

import tkinter as tk
from tkinter import ttk

root = tk.Tk()
container = ttk.Frame(root)
canvas = tk.Canvas(container)
scrollbar = ttk.Scrollbar(container, orient="vertical", command=canvas.yview)
scrollable_frame = ttk.Frame(canvas)

Now let's add some code that will call a function whenever the contents of the scrollable frame change. This is necessary because we must tell the canvas how large the frame will be, so that it knows how much it can scroll:

scrollable_frame.bind(
    "<Configure>",
    lambda e: canvas.configure(
        scrollregion=canvas.bbox("all")
    )
)

The <Configure> event we're binding here triggers whenever the scrollable_frame changes size—i.e. usually when we add or remove widgets from within it.

Only when it changes size do we want to change any of the scrolling properties.

The change is we modify the canvas' scrollregion to have a size of canvas.bbox("all").

Calling canvas.bbox("all") gives us a 4-value tuple describing the position of two corners of a rectangle which is the scroll region.

Next up we have to tell the canvas to actually draw the scrollable_frame inside itself:

canvas.create_window((0, 0), window=scrollable_frame, anchor="nw")

The values (0, 0) tell the canvas on which position to draw the window. The argument anchor="nw" tells the canvas to place the frame's top left corner on position (0, 0).

Finally, we have to configure the canvas so that when its y-position changes, the scrollbar moves:

canvas.configure(yscrollcommand=scrollbar.set)

Once you've done this, you can add elements to the scrollable_frame, and it'll work as you'd expect!

Also, don't forget to use Pack or Grid to add the container, canvas, and scrollbar to the application window.

The final code might look something like this:

import tkinter as tk
from tkinter import ttk

root = tk.Tk()
container = ttk.Frame(root)
canvas = tk.Canvas(container)
scrollbar = ttk.Scrollbar(container, orient="vertical", command=canvas.yview)
scrollable_frame = ttk.Frame(canvas)

scrollable_frame.bind(
    "<Configure>",
    lambda e: canvas.configure(
        scrollregion=canvas.bbox("all")
    )
)

canvas.create_window((0, 0), window=scrollable_frame, anchor="nw")

canvas.configure(yscrollcommand=scrollbar.set)

for i in range(50):

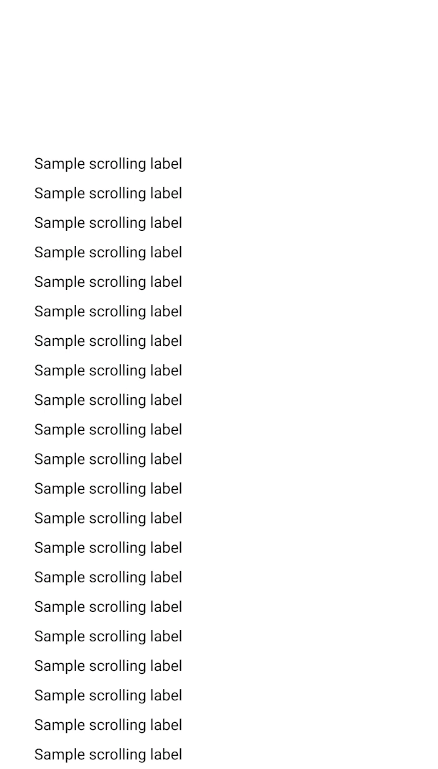

    ttk.Label(scrollable_frame, text="Sample scrolling label").pack()

container.pack()
canvas.pack(side="left", fill="both", expand=True)
scrollbar.pack(side="right", fill="y")

root.mainloop()

A reusable ScrollableFrame class

To make creating scrollable frames a bit easier, you might be tempted to code up an easy to use class.

We've done it for you, so you don't have to!

Here's a ScrollableFrame class that you can just use as a normal frame!

import tkinter as tk
from tkinter import ttk


class ScrollableFrame(ttk.Frame):
    def __init__(self, container, *args, **kwargs):
        super().__init__(container, *args, **kwargs)
        canvas = tk.Canvas(self)
        scrollbar = ttk.Scrollbar(self, orient="vertical", command=canvas.yview)
        self.scrollable_frame = ttk.Frame(canvas)

        self.scrollable_frame.bind(
            "<Configure>",
            lambda e: canvas.configure(
                scrollregion=canvas.bbox("all")
            )
        )

        canvas.create_window((0, 0), window=self.scrollable_frame, anchor="nw")

        canvas.configure(yscrollcommand=scrollbar.set)

        canvas.pack(side="left", fill="both", expand=True)
        scrollbar.pack(side="right", fill="y")

If you wanted to use this class, remember to place things inside self.scrollable_frame, and not directly into an object of this class:

root = tk.Tk()

frame = ScrollableFrame(root)

for i in range(50):
    ttk.Label(frame.scrollable_frame, text="Sample scrolling label").pack()

frame.pack()
root.mainloop()

Horizontal scrolling with Tkinter

Horizontal scrolling is somewhat rare because it results in weird UX, but sometimes it is unavoidable!

Fortunately, adding horizontal scrolling is relatively straightforward: simply replace the scrollbar-related parts that say y to say x.

Here's the ScrollableFrame class with both horizontal and vertical scrolling:

import tkinter as tk
from tkinter import ttk


class ScrollableFrame(ttk.Frame):
    def __init__(self, container, *args, **kwargs):
        super().__init__(container, *args, **kwargs)
        canvas = tk.Canvas(self)
        scrollbar = ttk.Scrollbar(self, orient="vertical", command=canvas.yview)
        scrollbar_h = ttk.Scrollbar(self, orient="horizontal", command=canvas.xview)
        self.scrollable_frame = ttk.Frame(canvas)

        self.scrollable_frame.bind(
            "<Configure>",
            lambda e: canvas.configure(
                scrollregion=canvas.bbox("all")
            )
        )

        canvas.create_window((0, 0), window=self.scrollable_frame, anchor="nw")

        canvas.configure(yscrollcommand=scrollbar.set)
        canvas.configure(xscrollcommand=scrollbar_h.set)

        scrollbar_h.pack(side="bottom", fill="x")
        scrollbar.pack(side="right", fill="y")
        canvas.pack(side="left", fill="both", expand=True)

There are 3 added lines related to a new variable, scrollbar_h (for horizontal).

Wrapping up

That's about it! Scrollable frames can be a tremendous pain, until you know how to make them. Even then, it looks weird because you don't think that you'd use a Canvas (which suggests drawing) to enable scrolling on an unrelated component.

But now you know how they interact, and why it's necessary.

If you'd like to learn much more about Tkinter and learn to build real-world projects, check out our GUI Development with Python and Tkinter course. It contains over 10 hours of premium content for you to learn everything that Tkinter has to offer.

See you next time!
